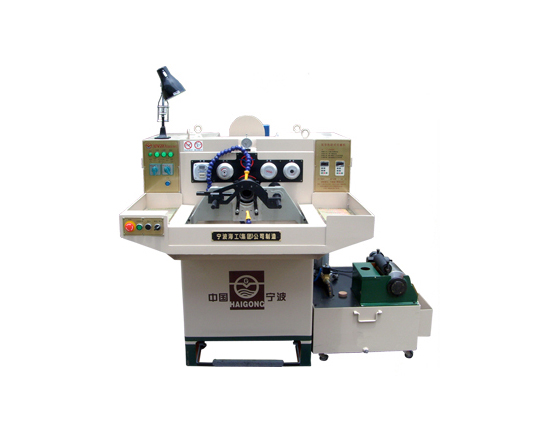

WHM-100A/B
Model | WHM-100A | WHM-100B |
machining range | (maneuvering stroke) | (maneuvering stroke) |
spindle speed | 250-2500rpm Inverter speed control, brake | 250-600rpm Inverter speed control, brake |
spindle motor | 1.5KW、Y90L-4 Inverter speed control, brake | 1.5KW、Y90L-4 Inverter speed control, brake |
stroke length | 10~160mm stepless | 10~160mm stepless |
stroke speed | 80~400rpm Inverter speed control, brake | 80~400rpm Inverter speed control, brake |
stroke motor | Slow down the mechanical and electrical machine Inverter speed control, brake | Slow down the mechanical and electrical machine Inverter speed control, brake |
stop brake of spindle and stroke | spindle mechanical, stroke electronic brake | spindle mechanical, stroke electronic brake |
oil pump motor | YSB-25 0.15KW 25 litres /min | YSB-25 0.15KW 25 litres /min |
exterior size | 1700*1100*1400mm | 1700*1100*1400mm |
machine net weight | 600kg | 600kg |
power | 380v 50hz 3x | 380v 50hz 3x |
